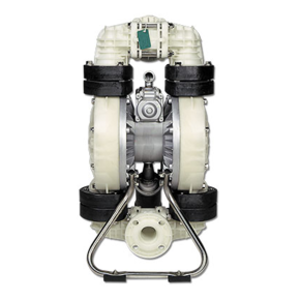

Yamada NDP-50BPH Polypropylene (PPG) AOD Pump - 2.0" Flanged - Hytrel, Hytrel/Buna-N Internals
MPN: NDP-50BPH
Available for Purchase
Get a delivery date for my location
Subject to factory lead times
Option to use your account at checkout
$4,531.76
QTY:
Our experts are here to help.
Call (866) 703-5665 for Expedited Shipping, Delivery Date, Product Questions & Help
Our experts are here to help.
Call (866) 703-5665 for Expedited Shipping, Delivery Date, Product Questions & Help
Attributes:
| Air Exhaust: | 1.0" Female NPT (includes silencer) | Air Inlet: | 3/4" Female NPT (includes ball valve) | Air Motor: | Standard: Aluminum |
| Air Supply Pressure: | 20 to 100 PSI | Ball Valve/O-ring Material: | Hytrel/Buna-N | Connection Type: | Flanged |
| Diaphragm Material: | Hytrel | Height: | 18.63 in | Inlet Connection Size: | 2.0" |
| Length: | 32.32 in | Manifold Type: | Center | Max. Dry Suction Lift: | 19 ft. |
| Max. Flow Rate: | 166 GPM | Model Type: | NDP-50 Series | Outlet Connection Size: | 2.0" |
| Rebuild Kit Number: | K50-PH | Valve Type: | Ball | Weight: | 108.1 lb |
| Width: | 14.91 in | Body Material: | Polypropylene (PPG) |
Overview:
The Yamada NDP-50BPH (852236) is a NDP-50 Series AOD Pump with a 2.0" inlet x 2.0" outlet Flanged connection, Polypropylene (PPG) body, Hytrel/Buna-N ball valve/o-ring material, ball valve type, center manifold, and 166 GPM max flow rate. Rebuild kit number K50-PH. All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly. Outside-accessible air valve allows for inspection or maintenance without removing the pump from service. The Yamada-designed pilot valve is an individual modular pilot valve that actuates the air valve. It is depressed slightly by the inner center disk creating a pressure drop at one end of the air valve, allowing shifting to occur. It is maintenance free with no cumbersome snap rings or lubricated dynamic o-rings to replace or repair.
