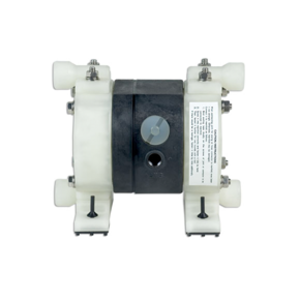

Yamada NDP-5FPT Polypropylene (PPG) AOD Pump - 1/4" Female NPT - PTFE, PTFE/PTFE Internals
MPN: NDP-5FPT
Available for Purchase
Get a delivery date for my location
Subject to factory lead times
Option to use your account at checkout
$484.50
QTY:
Our experts are here to help.
Call (866) 703-5665 for Expedited Shipping, Delivery Date, Product Questions & Help
Our experts are here to help.
Call (866) 703-5665 for Expedited Shipping, Delivery Date, Product Questions & Help
Attributes:
| Air Exhaust: | 3/8" Female NPT (includes silencer) | Air Inlet: | 1/4" Female NPT (includes ball valve) | Air Motor: | Ryton Air Motor |
| Air Supply Pressure: | 20 to 100 PSI | Ball Valve/O-ring Material: | PTFE/PTFE | Connection Type: | Female NPT |
| Diaphragm Material: | PTFE | Height: | 6.14 in | Inlet Connection Size: | 1/4" |
| Length: | 5.79 in | Manifold Type: | End | Max. Cycles Per Minute: | 400 |
| Max. Dry Suction Lift: | 5 ft. | Max. Flow Rate: | 3.4 GPM | Model Type: | NDP-5 Series |
| Outlet Connection Size: | 1/4" | Rebuild Kit Number: | K5-PT-2 | Valve Type: | Flat |
| Weight: | 4.1 lb | Width: | 8 in | Body Material: | Polypropylene (PPG) |
Overview:
The Yamada NDP-5FPT (851562) is a NDP-5 Series AOD Pump with a 1/4" inlet x 1/4" outlet Female NPT connection, Polypropylene (PPG) body, PTFE/PTFE ball valve/o-ring material, flat valve type, end manifold, and 3.4 GPM max flow rate. Rebuild kit number K5-PT-2. All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly. Outside-accessible air valve allows for inspection or maintenance without removing the pump from service. The Yamada-designed pilot valve is an individual modular pilot valve that actuates the air valve. It is depressed slightly by the inner center disk creating a pressure drop at one end of the air valve, allowing shifting to occur. It is maintenance free with no cumbersome snap rings or lubricated dynamic o-rings to replace or repair.
