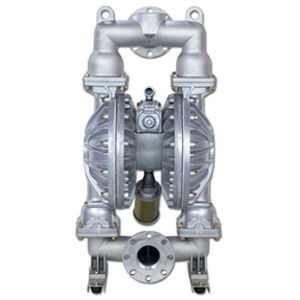

Yamada NDP-80BAV Aluminum (ADC-12) AOD Pump - 3.0" Flanged/NPT - Viton, Viton/Viton Internals
MPN: NDP-80BAV
Available for Purchase
Get a delivery date for my location
Subject to factory lead times
Option to use your account at checkout
$5,393.08
QTY:
Our experts are here to help.
Call (866) 703-5665 for Expedited Shipping, Delivery Date, Product Questions & Help
Our experts are here to help.
Call (866) 703-5665 for Expedited Shipping, Delivery Date, Product Questions & Help
Attributes:
| Air Exhaust: | 1.0" Female NPT (includes silencer) | Air Inlet: | 3/4" Female NPT (includes ball valve) | Air Motor: | Standard: Aluminum |
| Air Supply Pressure: | 20 to 100 PSI | Ball Valve/O-ring Material: | Viton/Viton | Connection Type: | Flanged/NPT |
| Diaphragm Material: | Viton | Height: | 20.43 in | Inlet Connection Size: | 3.0" |
| Length: | 40.75 in | Manifold Type: | Center | Max. Dry Suction Lift: | 19 ft. |
| Max. Flow Rate: | 215 GPM | Model Type: | NDP-80 Series | Outlet Connection Size: | 3.0" |
| Rebuild Kit Number: | K80-MV | Valve Type: | Ball | Weight: | 165.1 lb |
| Width: | 18.38 in | Body Material: | Aluminum (ADC-12) |
Overview:
The Yamada NDP-80BAV (852306) is a NDP-80 Series AOD Pump with a 3.0" inlet x 3.0" outlet Flanged/NPT connection, Aluminum (ADC-12) body, Viton/Viton ball valve/o-ring material, ball valve type, center manifold, and 215 GPM max flow rate. Rebuild kit number K80-MV. All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly. Outside-accessible air valve allows for inspection or maintenance without removing the pump from service. The Yamada-designed pilot valve is an individual modular pilot valve that actuates the air valve. It is depressed slightly by the inner center disk creating a pressure drop at one end of the air valve, allowing shifting to occur. It is maintenance free with no cumbersome snap rings or lubricated dynamic o-rings to replace or repair.
