Diaphragm Seals
Diaphragm seals protect pressure gauges, switches and transmitters from corrosive, viscous, hot or clogging process media. A flexible diaphragm transfers pressure through a fill fluid so the instrument never touches the process.
Diaphragm Seal Types
- Threaded seals – general-purpose protection
- Flanged seals – larger connections and higher pressures
- Sanitary seals – tri-clamp for food and pharma
- In-line seals – slurries and flowing media
- Capillary systems – remote mounting
Choosing a Seal
Select diaphragm material, fill fluid and connection for your process. Consider temperature effects and instrument range. Assemblies are often filled and calibrated as a unit.
Centro supplies diaphragm seals and can help you choose the right seal and fill fluid for your instrument.
Related categories: Seals and Accessories
Filter
Filter
4 items
content loaded

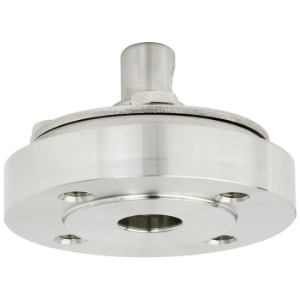

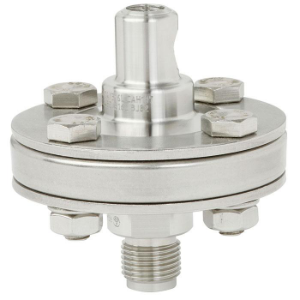

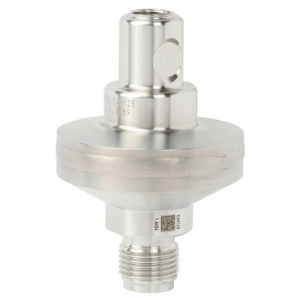

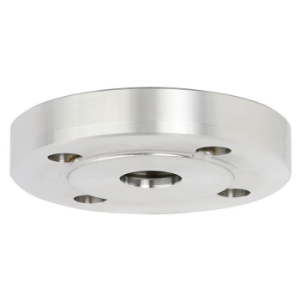

The Ashcroft® 310 and 315 mini-diaphragm seals protect pressure measuring instruments. Used to ensure process compatibility, they are also applied when process media exhibit pulsation and the potential for plugging or freeze-up. An ideal choice for limited space installations.
$172.20
In Stock (150)Ships within 1 business day
Hyett Diaphragm Seal;
$306.36
Available for Purchase
Subject to factory lead times
HYETT;SEAL
$268.63$292.00
Available for Purchase
Subject to factory lead times
Hyett;SEAL
$474.29
Available for Purchase
Subject to factory lead times
The Ashcroft® 310 and 315 mini-diaphragm seals protect pressure measuring instruments. Used to ensure process compatibility, they are also applied when process media exhibit pulsation and the potential for plugging or freeze-up. An ideal choice for limited space installations.
$172.20
In Stock (150)Ships within 1 business day
Hyett Diaphragm Seal;
$306.36
Available for Purchase
Subject to factory lead times
HYETT;SEAL
$268.63$292.00
Available for Purchase
Subject to factory lead times
Hyett;SEAL
$474.29
Available for Purchase
Subject to factory lead times
FAQS
- O-ring material selection depends on the fluid being sealed, the temperature range, and the pressure. Buna-N (Nitrile/NBR) is the most widely used general-purpose elastomer — it works well with petroleum products, hydraulic oils, water, and air at temperatures from –40°F to 250°F. EPDM is the choice for water, steam, and polar solvents (ketones, alcohols) but is not compatible with petroleum products. Viton (FKM) handles a wide range of chemicals, fuels, and oils at high temperatures up to 400°F — it's the premium general-purpose seal material. Silicone offers an extremely wide temperature range (–100°F to 450°F) but has poor abrasion resistance and is not suitable for petroleum or dynamic applications. PTFE (Teflon) provides universal chemical resistance but is rigid and requires higher sealing force — often used as backup rings or in combination with elastomer energizers. Kalrez (FFKM) offers near-universal chemical resistance with high-temperature capability up to 600°F but at a significantly higher cost. Always verify compatibility using the seal manufacturer's chemical resistance chart before selecting.
- A diaphragm seal is a flexible membrane assembly that mounts between the process connection and the pressure instrument (gauge or transmitter), physically separating the instrument's sensing element from direct contact with the process fluid. The space between the diaphragm and the instrument is filled with a compatible fill fluid (typically silicone oil) that hydraulically transmits the process pressure to the instrument. This protects the instrument from corrosive chemicals that would attack the sensor, viscous fluids that would clog the sensing port, hot media that would exceed the instrument's temperature rating, slurries or solidifying media that would plug the instrument cavity, and sanitary processes that require cleanable, crevice-free surfaces. Diaphragm seals are available in direct-mount (bolted directly to the instrument) and remote-mount (connected via capillary tubing for high-temperature or hard-to-reach installations) configurations, in materials ranging from 316SS to Hastelloy, tantalum, and PTFE-lined options.
- The difference is in how the diaphragm seal connects to the process piping or vessel. A threaded diaphragm seal has an NPT or BSP threaded connection that screws into a threaded process tap — it is easy to install and remove, commonly used in general industrial applications, and available in sizes from 1/4" to 2". A welded (or flanged/sanitary) diaphragm seal is permanently welded or bolted to the process vessel or pipe — it provides a stronger, more secure connection that can handle higher pressures and temperatures, and it eliminates the potential leak path of threaded connections. Welded seals are used in critical or high-pressure applications. Flanged diaphragm seals bolt to flanged process connections (ASME 150, 300, 600, etc.) and are standard for larger pipe sizes and higher pressure ratings. Sanitary (tri-clamp) diaphragm seals are used in food, beverage, and pharmaceutical applications where the seal must be easily removed for cleaning and must have no crevices where bacteria can grow.
- Seal replacement frequency depends on the seal material, the process conditions, and the type of service. Static seals (O-rings and gaskets in flanged connections that don't move) can last many years if the material is compatible with the fluid and temperature — inspect them whenever a connection is disassembled for maintenance and replace if they show hardening, cracking, swelling, or deformation. Dynamic seals (valve packing, pump seals, and seals in rotating equipment) wear from friction and typically need replacement more frequently — every 1–3 years depending on cycle count and severity of service. Diaphragm seals should be inspected annually and the fill fluid condition checked — if the instrument readings drift or become sluggish, the diaphragm may have developed a leak or the fill fluid may have degraded. Best practice is to include seal inspection in your preventive maintenance program, keep spare seal kits on hand for critical instruments, and replace seals proactively during scheduled shutdowns rather than waiting for failure.
