Pump Control System Applications - Toshiba Motors

The AS1 adjustable speed drive builds on Toshiba's history of supplying powerful, reliable, and versatile drives. The modular construction of the AS1 allows the unit to be installed into nearly any application quickly and easily. The drive can operate with little or no programming. At the same time, the AS1 maintains one of the most expansive parameter sets in the industry. Its sealed cabinet design, new PID algorithm and motor-over-flux-braking technology make this drive adept to handle the most difficult applications. The AS1's advanced features and new technologies make it the new contender in the PWM control drive market.

Toshiba’s AS3 adjustable speed drive is designed for demanding industrial systems. With an emphasis on built- in communications, end-users can access real-time data and refined controls without the expense of a micro PLC, maximizing system efficiency. Advanced features, such as an embedded web server, make the AS3 an important component for Industry 4.0/IoT (Internet of Things). The AS3 provides the flexibility of working with permanent magnet motors. In addition, multi-PID control allows a greater level of precise control of difficult dynamic systems, by controlling booster pumps based on system demand. An easy-to-operate keypad and LCD display make navigating the system to find important screens and parameters simple. The AS3 has Safety Torque Off capability quickly shutting the system in the event of an emergency stop, while alarm QR codes provide immediate access to support.

The G9 adjustable speed drive is the most advanced severe duty drive ever offered by Toshiba. It is a blend of a robust power platform and a state-of-the-art control scheme. With its 115% continuous overload rating and its dual 32-bit processor controls, the G9 provides the ability to operate the toughest of applications while still maintaining a high level of control.

The Toshiba HX7 Adjustable Speed Drive (ASD) is a robust and efficient solution designed for demanding industrial applications requiring precise motor control and minimal harmonic distortion. As part of Toshiba's renowned 7-Series, the HX7 ASD integrates advanced technology with proven reliability to enhance performance across various sectors.​

The Toshiba EQP Global® 840 motor series serves as a cost-effective alternative to meet key features of the 841 specifications, specifically designed for the mill and chemical industries. It features a robust, totally enclosed fan cooled (TEFC) design with premium construction. The EQP Global 840 series has a double shaft sealed arrangement for frames 324-365T. Frames 404T and above feature labyrinth seals on both ends. These features provide an IP56 rating, protecting the motor against moisture and contaminants entering the enclosure. A complete heavy-duty cast-iron construction extends the motor’s operational life and minimizes maintenance requirements, reducing downtime. The Toshiba EQP Global 840 motor series provides a reliable and durable solution for industrial applications.

The Toshiba EQP Global® 840 motor series serves as a cost-effective alternative to meet key features of the 841 specifications, specifically designed for the mill and chemical industries. It features a robust, totally enclosed fan cooled (TEFC) design with premium construction. The EQP Global 840 series has a double shaft sealed arrangement for frames 324-365T. Frames 404T and above feature labyrinth seals on both ends. These features provide an IP56 rating, protecting the motor against moisture and contaminants entering the enclosure. A complete heavy-duty cast-iron construction extends the motor’s operational life and minimizes maintenance requirements, reducing downtime. The Toshiba EQP Global 840 motor series provides a reliable and durable solution for industrial applications.

The Toshiba EQP Global® 841 motor series is designed to meet and exceed the requirements of the petrochemical industry’s 841 specifications. With a totally enclosed fan cooled (TEFC) design, its robust construction extends operating life and minimizes maintenance and downtime. The EQP Global 841 series includes enhanced features such as labyrinth seals on both ends, providing an IP56 rating that protects against moisture and contaminants entering the enclosure. With a complete heavy-duty cast-iron construction, these motors are well-suited for severe environments. Manufactured with a commitment to quality, the EQP Global 841 series delivers exceptional performance and reliability in demanding applications. The EQP Global 841 specifically addresses the needs of the petrochemical industry, where premium performance and reliability are imperative. Building on over 20 years of success with our EQPIII motor series, the EQP Global 841 features design enhancements on the rotor, frame, brackets, fan, and bearings. This cutting-edge motor product line is designed to meet or exceed the competitive demands of the global market, as well as the requirements of the Energy Independence & Security Act of 2007 (EISA), while maintaining the high reliability and quality expected from Toshiba.

The Toshiba EQP Global® 841 motor series is designed to meet and exceed the requirements of the petrochemical industry’s 841 specifications. With a totally enclosed fan cooled (TEFC) design, its robust construction extends operating life and minimizes maintenance and downtime. The EQP Global 841 series includes enhanced features such as labyrinth seals on both ends, providing an IP56 rating that protects against moisture and contaminants entering the enclosure. With a complete heavy-duty cast-iron construction, these motors are well-suited for severe environments. Manufactured with a commitment to quality, the EQP Global 841 series delivers exceptional performance and reliability in demanding applications. The EQP Global 841 specifically addresses the needs of the petrochemical industry, where premium performance and reliability are imperative. Building on over 20 years of success with our EQPIII motor series, the EQP Global 841 features design enhancements on the rotor, frame, brackets, fan, and bearings. This cutting-edge motor product line is designed to meet or exceed the competitive demands of the global market, as well as the requirements of the Energy Independence & Security Act of 2007 (EISA), while maintaining the high reliability and quality expected from Toshiba.

The Toshiba EQP Global® Cooling Tower Motor is engineered to deliver exceptional performance and reliability in the demanding environments of cooling tower applications. Designed to operate efficiently in conditions of 100% humidity, this motor series is ideal for industries such as HVAC, power generation, chemical processing, and pulp and paper.​

The Toshiba EQP Global® XP Explosion Proof Motor is a robust and reliable solution engineered for hazardous environments where explosive gases, vapors, or dust may be present. Designed to contain internal explosions and prevent the release of hazardous substances, this motor ensures safety and compliance in critical applications.​

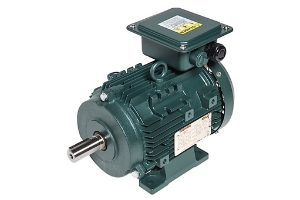

The renowned Toshiba EQP Global low voltage motors includes IEC motors compliant with the requirements of IEC 60034, designed for severe duty applications and featuring IP55 ingress protection and a totally enclosed fan cooled (TEFC) enclosure. The EQP Global IEC motor series builds on 20 years of success with the EQPIII motor series, now with multiple design innovations resulting in one of the lowest cost-of-ownership products in the industry. The motor series is available in .75 to 45 kW with speeds ranging from 1,000 to 3,000 RPM.

The Toshiba EQP Global ® Severe Duty (SD) motor series is engineered to excel in a wide range of general-purpose industrial applications. It features a robust, totally enclosed fan cooled (TEFC) design with premium construction. The series is designed for durability, boasting an IP55 rating that effectively protects against moisture and contaminants, making it ideal for severe environments. Its heavy-duty cast-iron frame, brackets, and t-box contribute to long-lasting performance and reliability. Overall, the EQP Global Severe Duty series delivers exceptional performance and reliability as a high-quality motor choice for industrial needs.

​The Toshiba EQP Global® XP Explosion Proof Motor is engineered to deliver exceptional performance and safety in hazardous environments where explosive gases, vapors, or dust may be present. Designed to contain internal explosions and prevent the release of hazardous substances, this motor ensures reliability and compliance in critical applications.

​The Toshiba EQPIII Global® ODP (Open Drip Proof) Motor Series is engineered to deliver high efficiency, reliability, and performance in well-ventilated indoor environments. Building upon the legacy of the EQPIII series, these motors are designed to meet the demands of various industrial applications while ensuring cost-effective operation.​

​The Toshiba EQP Global® Close-Coupled Pump Motor Series is engineered for precision and reliability in close-coupled pumping applications across various industries. Designed to meet global standards, this series incorporates advanced features that enhance performance, durability, and energy efficiency.

The Toshiba EQP Global ® Severe Duty (SD) motor series is engineered to excel in a wide range of general-purpose industrial applications. It features a robust, totally enclosed fan cooled (TEFC) design with premium construction. The series is designed for durability, boasting an IP55 rating that effectively protects against moisture and contaminants, making it ideal for severe environments. Its heavy-duty cast-iron frame, brackets, and t-box contribute to long-lasting performance and reliability. Overall, the EQP Global Severe Duty series delivers exceptional performance and reliability as a high-quality motor choice for industrial needs.

​The Toshiba Medium Voltage Totally Enclosed Fan Cooled (TEFC) Fin-Type Motor is engineered for high-performance applications in demanding industrial environments. Its robust construction and advanced features make it ideal for industries such as oil and gas, mining, pulp and paper, and water and wastewater treatment.

The Toshiba Open Drip Proof (ODP) Medium Voltage Motors are engineered to deliver high torque and low vibration performance, meeting the industry's increasing demands for energy efficiency and product reliability. These motors are ideal for applications in well-ventilated indoor environments, such as fans, pumps, compressors, and conveyors.​

The Toshiba P9 Adjustable Speed Drive (ASD) is an advanced solution engineered for precise pump control in various industrial applications. By integrating Toshiba's proprietary Virtual Linear Pump (VLP®) Technology, the P9 ASD offers linear and accurate regulation of pressure, temperature, and flow, enhancing system performance and efficiency.​

The Toshiba S15 Microdrive is a compact and high-performance adjustable speed drive (ASD) engineered to deliver precise motor control across a wide range of industrial applications. Designed to handle both variable and constant torque demands, the S15 is ideal for use in industries such as HVAC, food and beverage processing, oil and gas, mining, and water treatment.​

Toshiba’s Quarry Duty motor utilizes a totally enclosed fan cooled design and provides exceptional high-starting torques, oversized superior-grade bearings, and shafts built with high strength steel to withstand the harshest environments. These key features allow our Quarry Duty motors to provide optimum reliability, performance, and efficiency for the toughest aggregate & cement and mining & mineral industries.

Toshiba’s Quarry Duty motor utilizes a totally enclosed fan cooled design and provides exceptional high-starting torques, oversized superior-grade bearings, and shafts built with high strength steel to withstand the harshest environments. These key features allow our Quarry Duty motors to provide optimum reliability, performance, and efficiency for the toughest aggregate & cement and mining & mineral industries.

Toshiba’s NEMA Premium ® brake motors are designed to meet the needs of general holding purposes and built to withstand the toughest conditions with highest efficiency, torque ratings and greater reliability. These premium efficient EQP Global Brake Motors are IP23-rated and suitable for indoor and outdoor use.

Toshiba’s Totally Enclosed Air-to-Air Cooled (TEAAC) motor series is designed for exceptional durability and performance in demanding conditions. These motors excel in wet, dirty, or dusty environments, ensuring reliable operation. The advanced cooling system effectively dissipates heat by circulating hot air through an internal heat exchanger, keeping the motor at optimal operating temperatures without exposure to external contaminants. This consistent cooling performance reduces maintenance needs and enhances operational efficiency. TEAAC motors are ideal for a variety of applications, including powering pumps and compressors in the oil and gas industry, operating equipment in marine environments, and handling corrosive substances in chemical processing plants.
