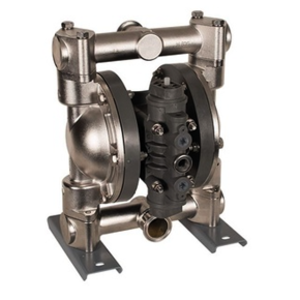

Yamada NDP-25BST 316 Stainless Steel AOD Pump - 1.0" Female NPT - PTFE, PTFE/PTFE Internals
MPN: NDP-25BST
Available for Purchase
Get a delivery date for my location
Subject to factory lead times
$2,716.12
Questions? Call 1-866-703-5665
Expedited Shipping, Delivery Date, Product Questions & Help
- Overview
The Yamada NDP-25BST (851541) is a NDP-25 Series AOD Pump with a 1.0" inlet x 1.0" outlet Female NPT connection, 316 Stainless Steel body, PTFE/PTFE ball valve/o-ring material, ball valve type, center manifold, and 49.0 GPM max flow rate. Rebuild kit number K25-MT-1. All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly. Outside-accessible air valve allows for inspection or maintenance without removing the pump from service. The Yamada-designed pilot valve is an individual modular pilot valve that actuates the air valve. It is depressed slightly by the inner center disk creating a pressure drop at one end of the air valve, allowing shifting to occur. It is maintenance free with no cumbersome snap rings or lubricated dynamic o-rings to replace or repair.
Air Exhaust: 3/4" Female NPT (includes silencer) Air Inlet: 3/8" Female NPT (includes ball valve) Air Motor: Standard: Aluminum Air Supply Pressure: 20 to 100 PSI Ball Valve/O-ring Material: PTFE/PTFE Body Material: 316 Stainless Steel Connection Type: Female NPT Diaphragm Material: PTFE Height: 11.3 in Inlet Connection Size: 1.0" Length: 15.08 in Manifold Type: Center Max. Cycles Per Minute: 210 Max. Dry Suction Lift: 18 ft. Max. Flow Rate: 49.0 GPM Model Type: NDP-25 Series Outlet Connection Size: 1.0" Rebuild Kit Number: K25-MT-1 Valve Type: Ball Weight: 46.1 lb Width: 14.48 in
