Ace Controls - HB-40-800
MPN: HB-40-800
Available for Purchase
Get a delivery date for my location
Subject to factory lead times
Requires Quote
Questions? Call 1-866-703-5665
Expedited Shipping, Delivery Date, Product Questions & Help
- Overview
- Features
- Specifications

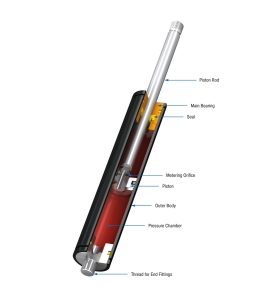

High quality and long service life: The hydraulic dampers of the product family HB can also be used as single or double acting brake. Its coated body and piston rods with wear-resistant surface treatment are features of high quality and long service life.
The maintenance free, ready-to-install and closed systems provide a constant feed rate and are adjustable. The control segment on the piston makes adjustment at the end position child’s play. Thanks to a broad selection of end fittings the assembly is easy to mount, so that the damper can be universally deployed for damping swinging masses, such as in power or free conveyors.
- Adjustable
- Compression force max. 674 lbs
- Stroke 31.50 inch
- Compression force max. 674 lbs
- Traction force max. 2,248 lbs
- Outer body diameter Ø 1.57 in inch
- Piston rod diameter Ø 0.55 in
- Lifetime Approx. 250,000 cycles
- Free travel Construction of the damper results in a free travel of approx. 20 % of stroke.
- Separator piston Available as a special option without free travel achieved by separator piston and nitrogen accumulator.
- Operating temperature range -4 °F to 176 °F
- Adjustment Achieved by turning the piston rod in its fully extended or fully compressed position. Clockwise rotation = increase of the damping Anti-clockwise rotation = decrease of the damping Damping force adjustable before installation. can add a max. of 0.24 in to the L dimension.
- Positive stop External positive stops 0.04"""" to 0.06"""" before the end of stroke provided by the customer.
- Damping medium Hydraulic oil or Automatic Transmission Fluid (ATF)
- Material Outer body: Black anodized aluminium; Piston rod: Steel with wear-resistant coating; End fittings: Zinc plated steel
- Mounting In any position
- Weight 8.117 lbs
- F and R Weight 0.0 lbs
- S Weight 0.0 lbs
- Customs tariff number 83024900
- Country of origin DE
Stroke: 3.94 in.
