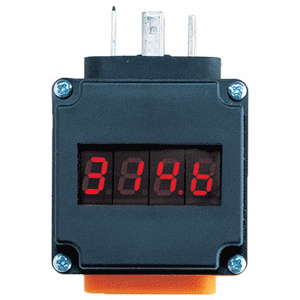

Kobold AUF-1000 - Standard Plug-on Display, 4-20 mA, 2-wire (Compatible with DRG, DRH, DPL, and DPM Series)
MPN: AUF-1000
In Stock (21)
Ships within 1 business day
$252.11
QTY:
Our experts are here to help.
Call (866) 703-5665 for Expedited Shipping, Delivery Date, Product Questions & Help
Our experts are here to help.
Call (866) 703-5665 for Expedited Shipping, Delivery Date, Product Questions & Help
Overview:
The KOBOLD AUF compact local electronic display transforms any 4-20 mA transmitter into a complete monitoring solution through its innovative sandwich-style design that installs effortlessly between existing EN 175301-803 Form A connectors without requiring additional wiring or power supplies. This intelligent display unit draws its power directly from the current loop while providing a clear 4-digit red LED readout with programmable scaling, decimal point positioning, and adjustable gate time—all configured through simple two-button menu navigation that stores settings permanently in non-volatile EEPROM memory. Available in multiple configurations including standard 2-wire operation, 3-wire compatibility, and optional open collector output for limit switching applications, the AUF accommodates diverse process monitoring requirements across flow, pressure, level, and temperature measurements with exceptional 0.2% accuracy. The rugged orange plastic housing with IP65 protection withstands industrial environments from 32°F to 140°F while the rotatable display orientation adapts to any installation angle for optimal viewing accessibility. With integrated diagnostic monitoring, overrange/underrange indication, and up to 10-year data retention capability, this maintenance-free display upgrade delivers professional-grade local indication without the complexity or cost of traditional panel-mounted instruments, making it ideal for retrofitting existing transmitters or enhancing new installations with immediate visual feedback.Features:
- Local Indication for Transducers & Transmitters
- Works with Standard EN 175301-803 Form A Type Hirschmann® Plug
- Switch Output Available
- Fully Scalable
Specifications:
- Power: 4-20 mA Loop-Powered
- Indicator: 4-Digit, Red LED
- Indication Range: -1999 to +9999
- Accuracy: 0.2 % of FS ± 1 Digit
- Optional Switch: PNP Open Collector
